Product line

Supercapacitor modules, cell to system

Five LIC hybrid supercapacitor module lines cover every ride-through tier from a 16 V pack soldered behind a power supply to an eight-module cascade into a 1000 V-class DC bus. All of them leave the same line: laser-welded busbars, cells sorted to a ±5% window, a test report in every box.

16 V–1000 V
voltage coverage
130 A
48V flagship continuous
4–6 wk
standard lead time
±5%
C/ESR sorting window
Request a Spec Sheet

Five lines

Pick by bus voltage, not by brochure

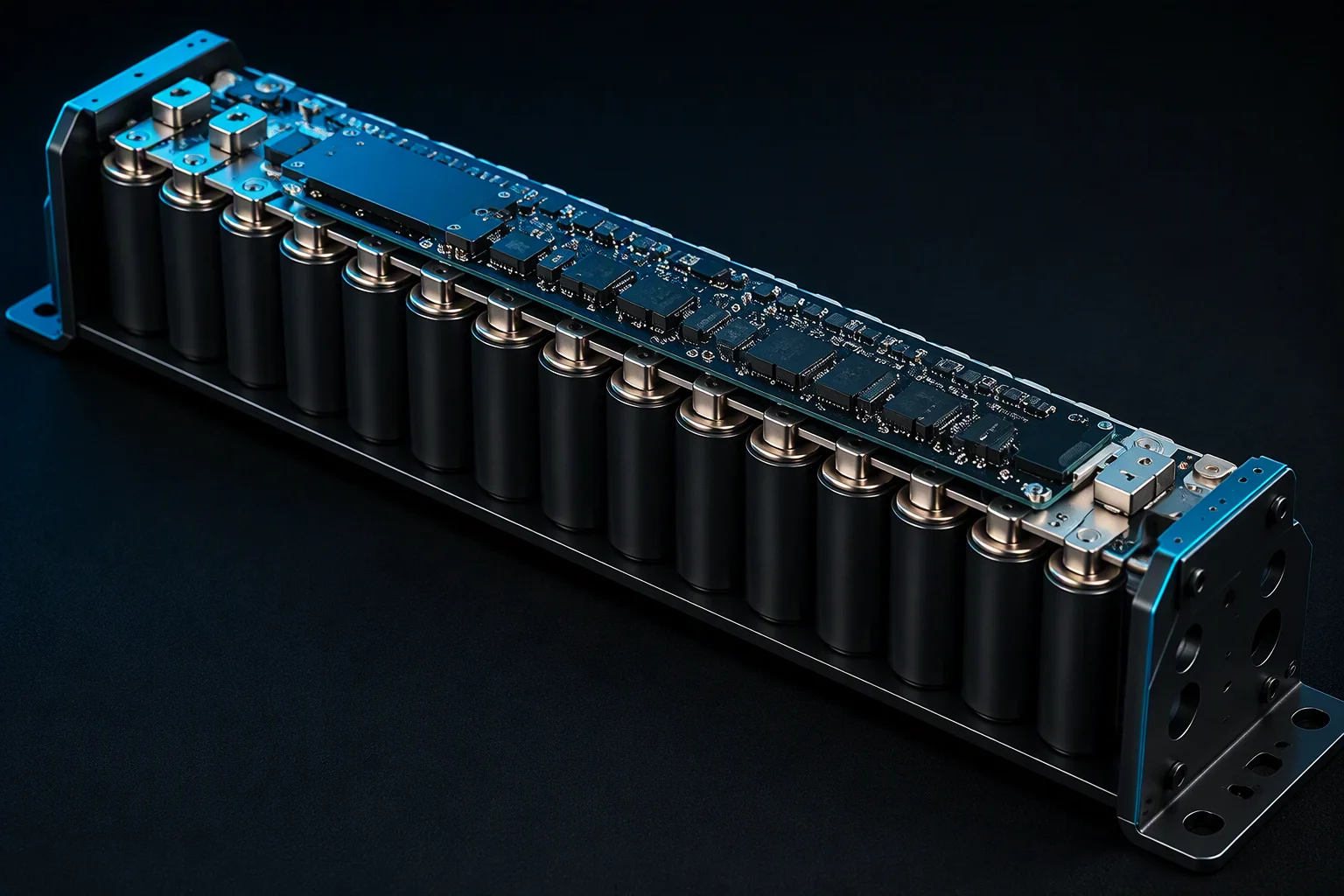

RackBridge 48V supercapacitor module with welded nickel busbars

48V · AI BACKUP

RackBridge 48V

16S / 48.6 V class, 166 F capacitance, 130 A continuous — the ride-through tier for power shelves and BBU bays.

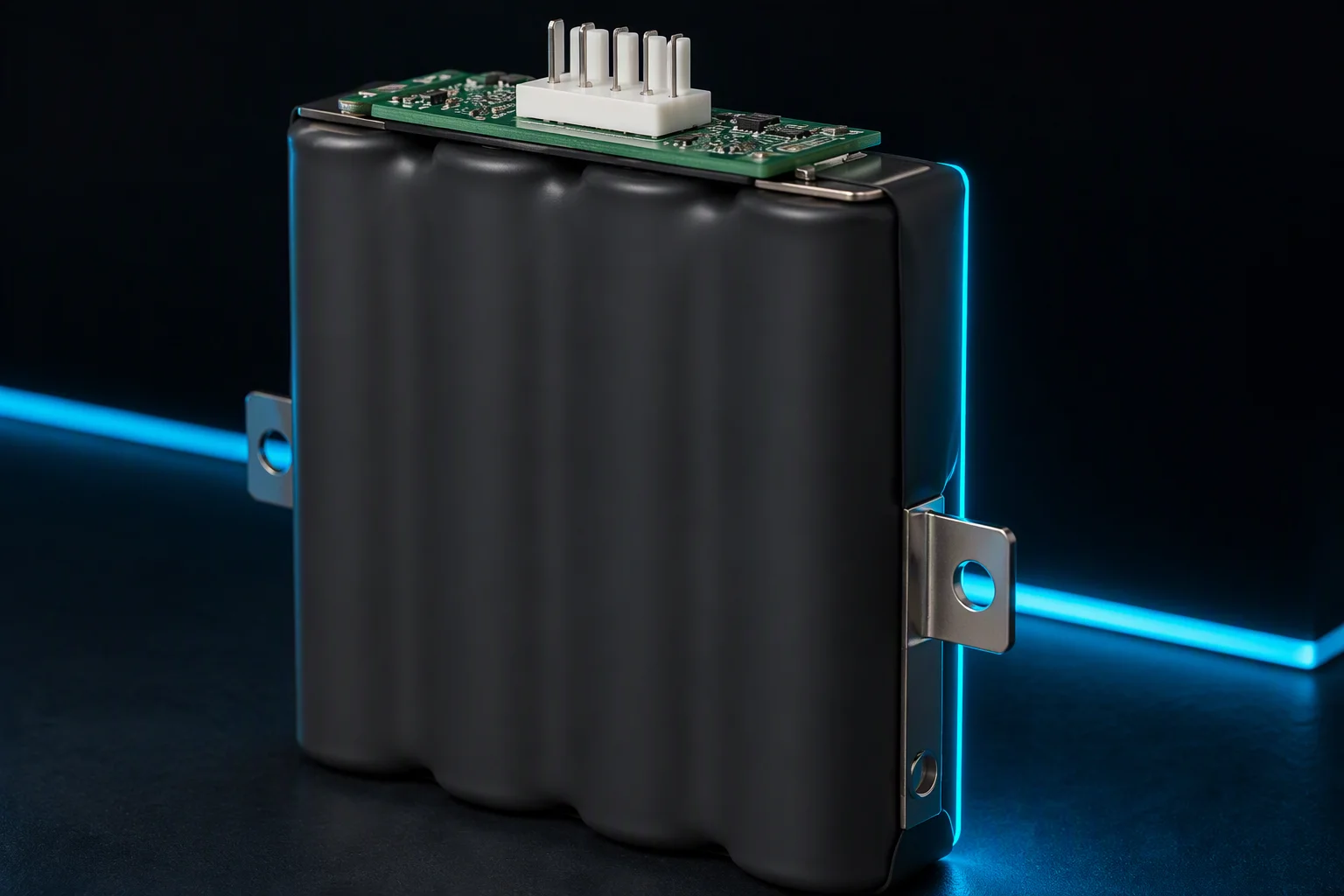

Compact 16V supercapacitor pack beside a server power supply board

16V · PSU ON-BOARD

PSU / 16V Pack

4S / 16 V class storage sized to the 65 J/GPU tier that GB300-class power supplies already build in.

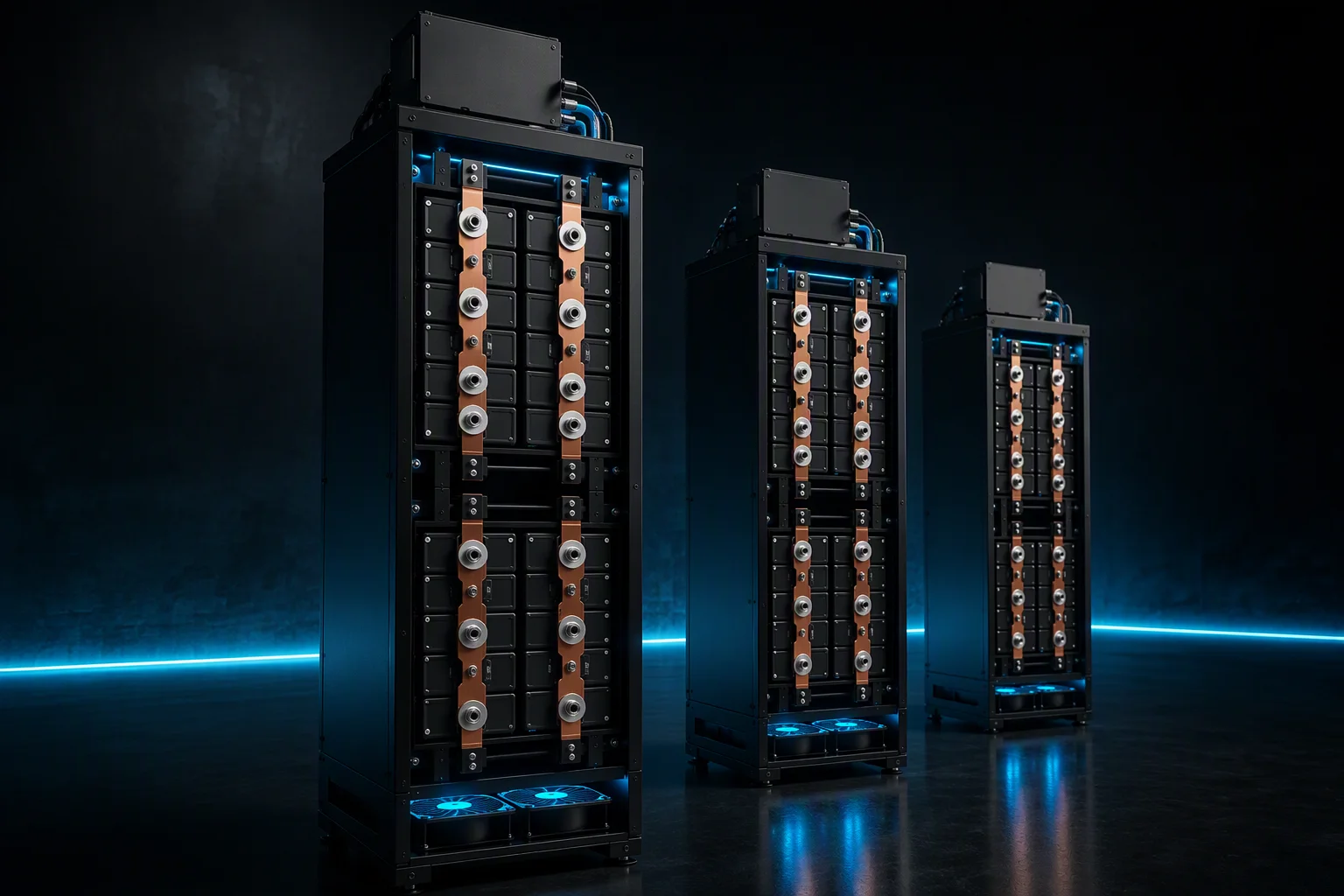

StackLine HV high-voltage supercapacitor module with fused busbars

125–182V · HIGH VOLTAGE

StackLine HV

125.4–182.4 V per module, eight-across to a 1000 V-class system. Fused busbars, CAN, forced-air option.

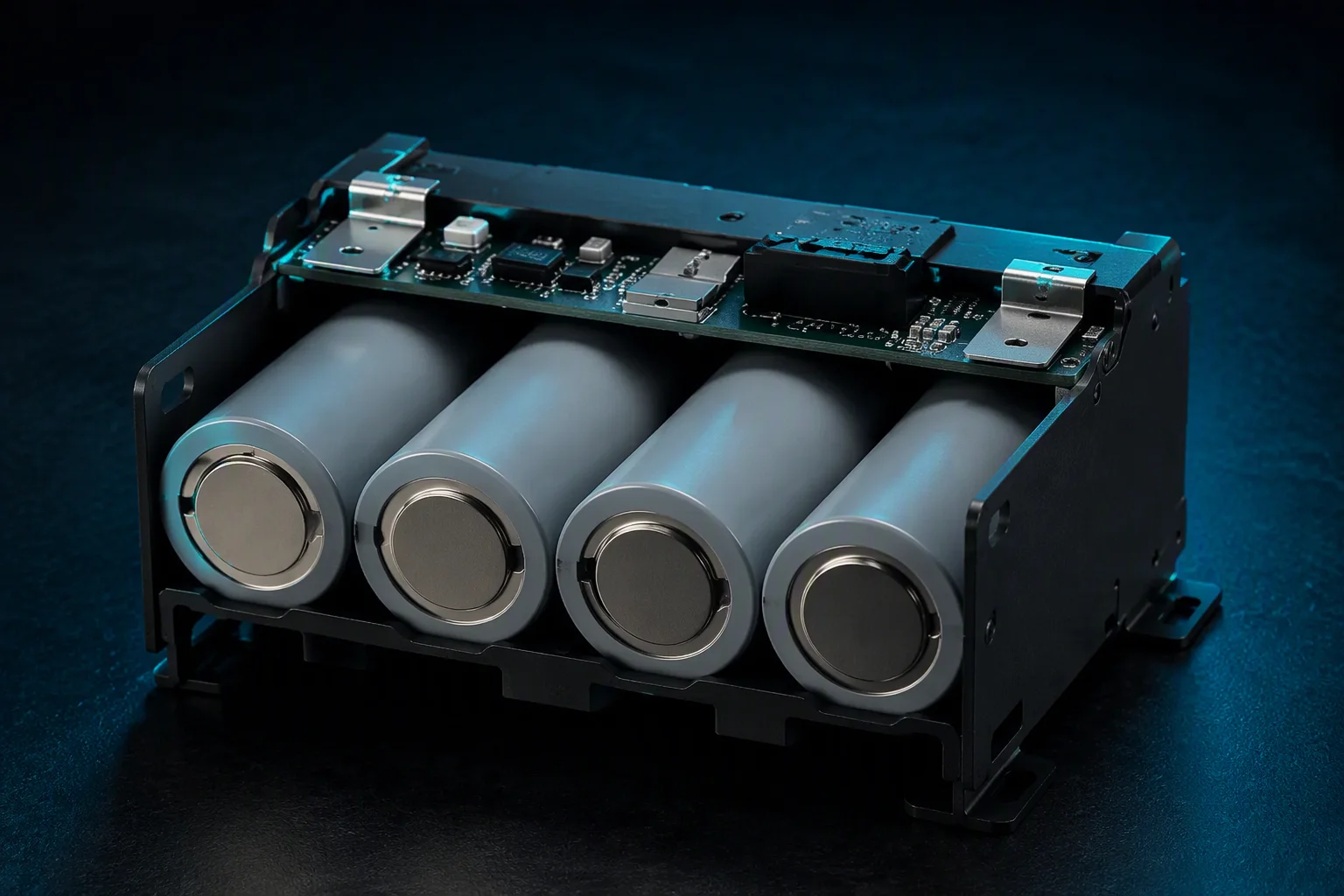

Low-voltage 12V supercapacitor backup module in a comms cabinet

12/24V · LOW VOLTAGE

Low-Voltage Modules

Quiet backup for comms, metering and embedded racks: <20 µA sleep drain, −40 °C start, no thermal runaway.

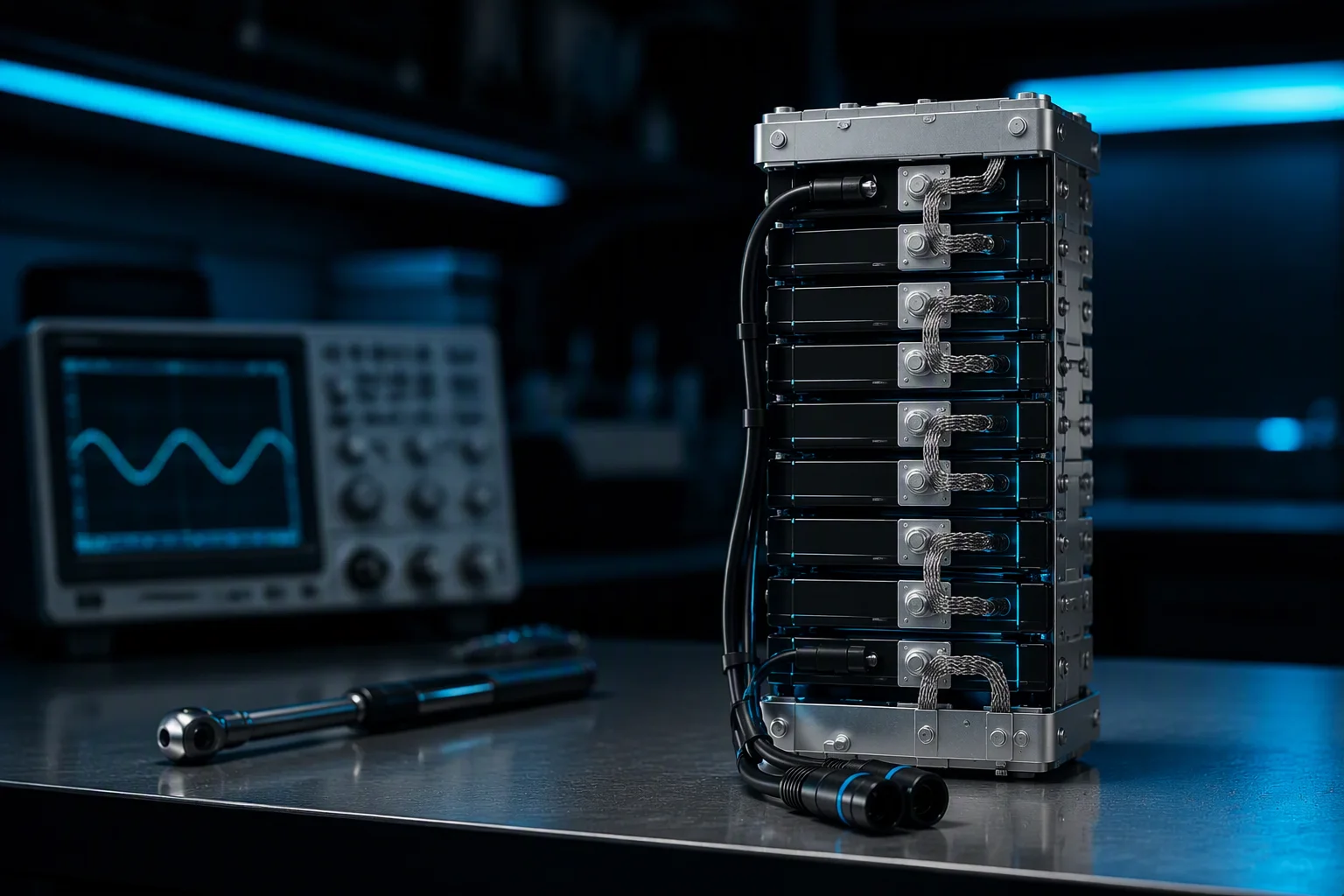

Custom cell-to-cell supercapacitor stack with braided busbar links on a bench

16–108V · CUSTOM ODM

Custom & ODM

Cell-to-cell builds to your drawing: balancing choice, structure, connectors, BMS. First article in 8–12 weeks.

Not sure which line fits?

Send your bus voltage and ride-through window — we answer within 48 hours with a cell count and a capacitance number.

Open the selector table ↓

Selector

The line-up on one screen

Product lineVoltage classKey ratingsBest fit
RackBridge 48V48.6 V (16S)166 F class · 130 A continuous · 1–50 msAI rack backup, BBU shelves
PSU / 16V Pack16 V (4S)Sized to the 65 J/GPU on-board storage tierServer PSU energy storage
StackLine HV 125125.4 V (33S)Fused busbars · CAN monitoringUPS bridge, DC bus ride-through
StackLine HV 182182.4 V (48S)62.5 F class · forced-air duct optionGrid-side bridge, genset start
HV cascade systemto 1000 V class8 modules in series · per-module FUSEIndustrial DC systems, transit power
Low-voltage 12V12 V class<20 µA sleep drain · 1–50 ms responseComms and embedded backup
Low-voltage 24V24 V class−40 °C cold start · no thermal runawayMetering, RTU, onboard rail
Custom CTC module16–108 V±5% C/ESR sorted · balancing to specNon-standard racks and retrofits
Custom cabinet systemsystem level16S building blocks · module-level telemetryContainer-scale integrators

Common to every line

What the five lines share

SORTING

±5% module window

Cells arrive with a −10/+30% factory spread; our C/ESR dual-parameter line bins them into a ±5% module class before welding.

TRACEABILITY

100% cells logged

Every cell in every serial number is recorded, and a per-module test report ships in the box — audit-ready by default.

EXPORT

UN 3499 paperwork

Class 9 shipping documents on the IATA A186 / PI 971 air basis, single-cell ≤10 Wh — freight forwarders accept without calls.

Dark bank of LIC supercapacitor modules with cyan charge indicators

Start the conversation

Sixteen volts to one thousand. Where does your bus sit?

Name the voltage and the ride-through window — the RFQ comes back inside 48 hours with a cell count, a capacitance class and a lead time.

Get a Quote
